Articulated Boom Lifts · Flexible Up & Over Reach

Name: Lerise Articulated Boom Lift LAR Series
Brand: Lerise
Price: Get Quote USD
Availability: InStock

Engineered with a unique "multi-segment folding" boom design, Lerise Articulated Boom Lift provides the ultimate "Up-and-Over" capability to achieve true 360-degree spatial coverage. Whether you are managing delicate interior renovations, performing routine facility maintenance, or tackling complex electrical construction in rugged outdoor environments, Lerise Articulating Boom Lift (knuckle booms lift) is engineered to be your ultimate high-altitude partner. It combines the precision needed for indoor tasks with the raw power required for the toughest job sites.

Engineered with high-strength, deep-tread off-road tires and an advanced oscillating axle system, Lerise Knuckle Boom Lift maintains constant ground contact and superior traction. It glides over mud, loose gravel, and uneven debris with ease. It supports full height travel – you can drive the machine at any working height without lowering the platform.

Up & Over Capability Jib Movement ±70° 2WD/4WD 360° Rotation Electric/Diesel

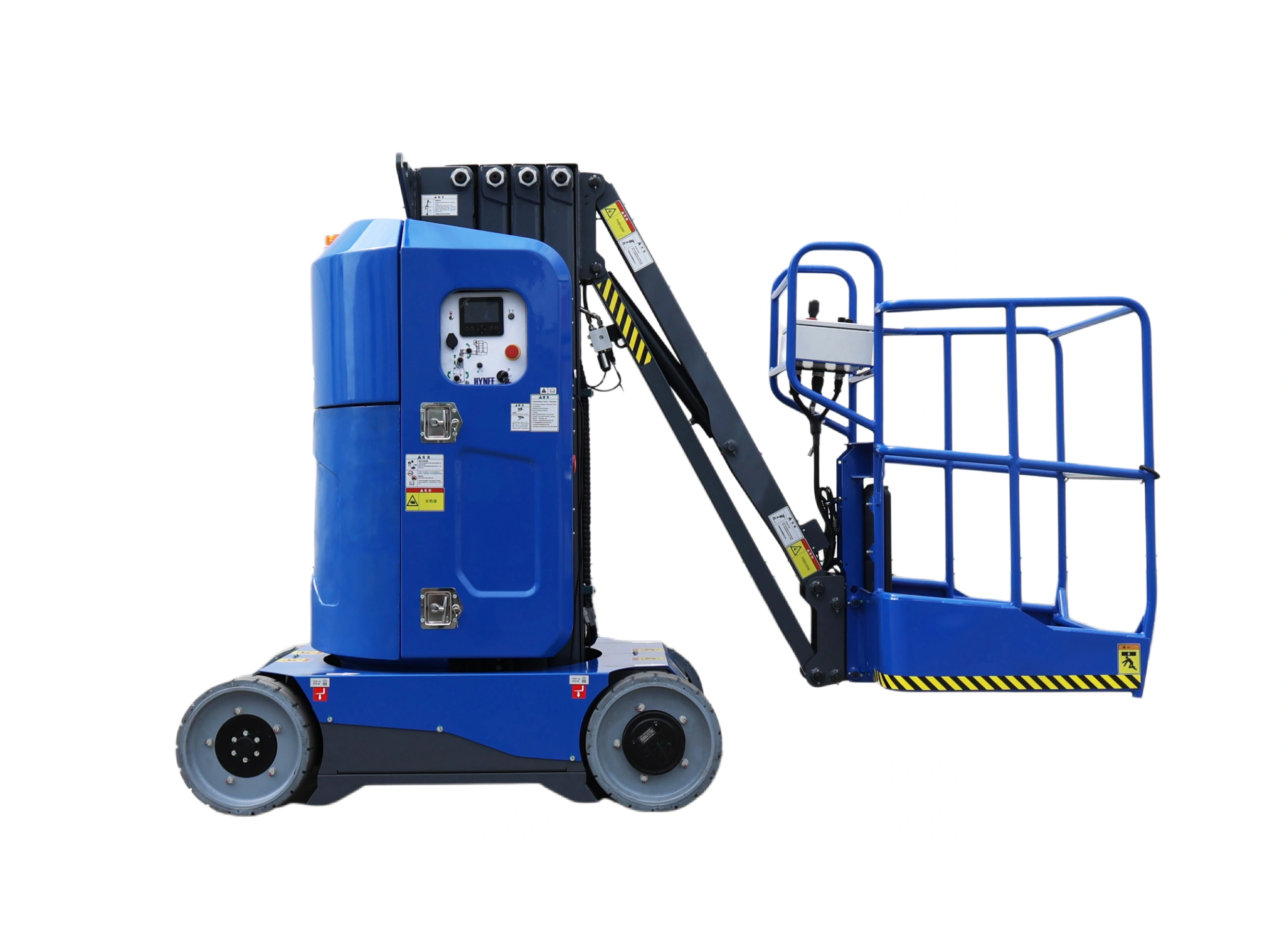

LMC8 · Wheeled Compact Articulated Boom Lift

Electric

Designed specifically to solve the common industry pain point of "high reach but zero access," Lerise wheeled compact articulated boom lift combines a powerhouse reach with a remarkably slim footprint.With an overall width of only 1 meter, this lift effortlessly glides through standard double doorways, narrow warehouse corridors, and congested production lines where traditional equipment simply cannot fit.

Max Working Height9.7 m (31 ft 10 in)

Horizontal Reach3.36 m (11 ft)

Up and Over Height6.3 m (20 ft 8 in)

Machine Width1 m (3 ft 3 in)

Weight2,960 kg (6,526 lb)

Lift Capacity200 kg (441 lb)

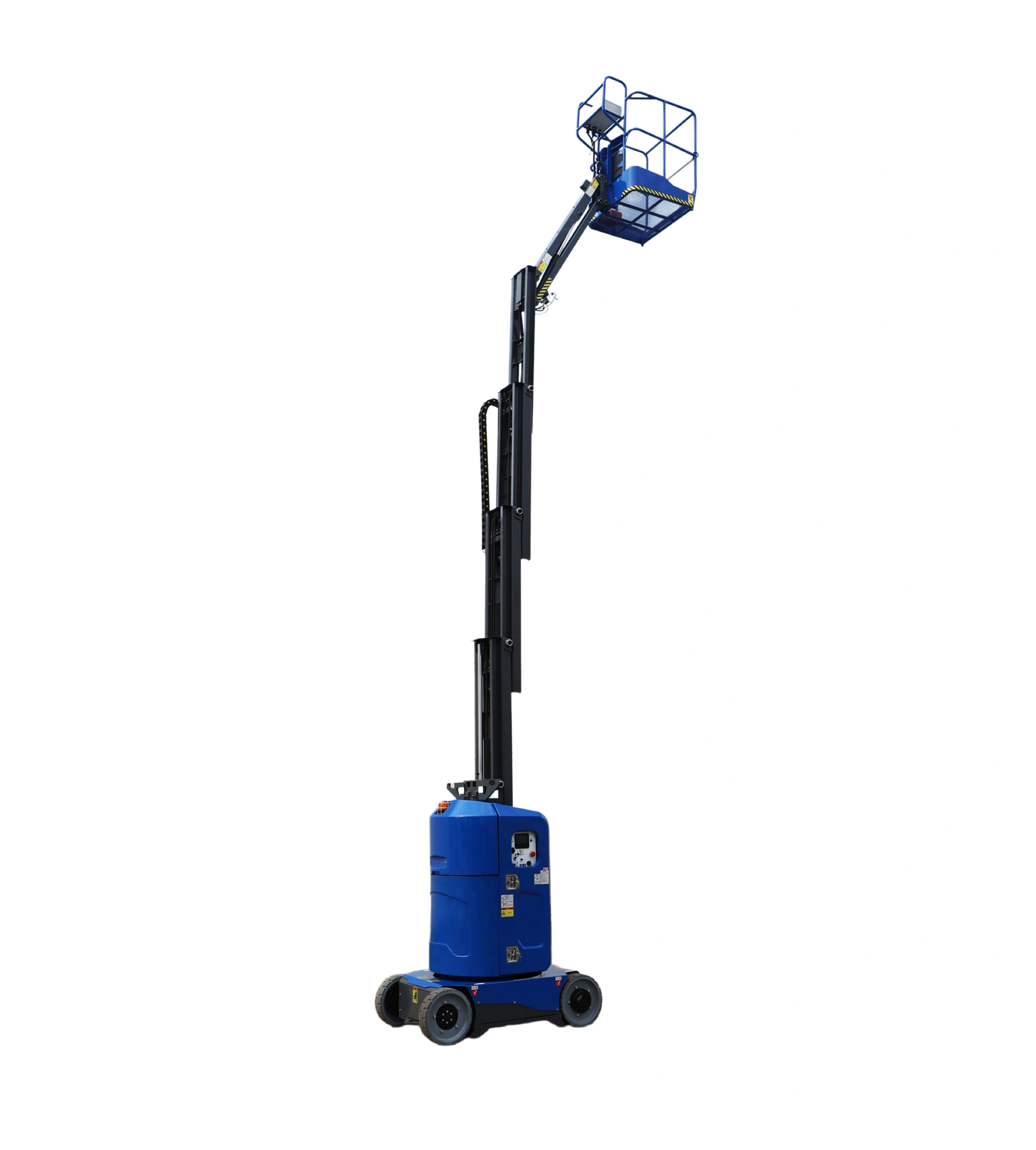

LMC9 · Wheeled Compact Articulated Boom Lift

Electric

Lerise wheeled compact Knuckle Boom lift is featured with superior "Up-and-Over" Capability. Engineered for versatility, the boom can extend horizontally after reaching a specific height. This allows operators to reach over and around obstacles such as racking, heavy machinery, and chandeliers to access the target point directly.

Max Working Height10.6 m (34 ft 9 in)

Horizontal Reach3.61 m (11 ft 10 in)

Lift Capacity200 kg (441 lb)

Machine Width1 m (3 ft 3 in)

Weight3,300 kg (7,275 lb)

Up and Over Height7 m (23 ft)

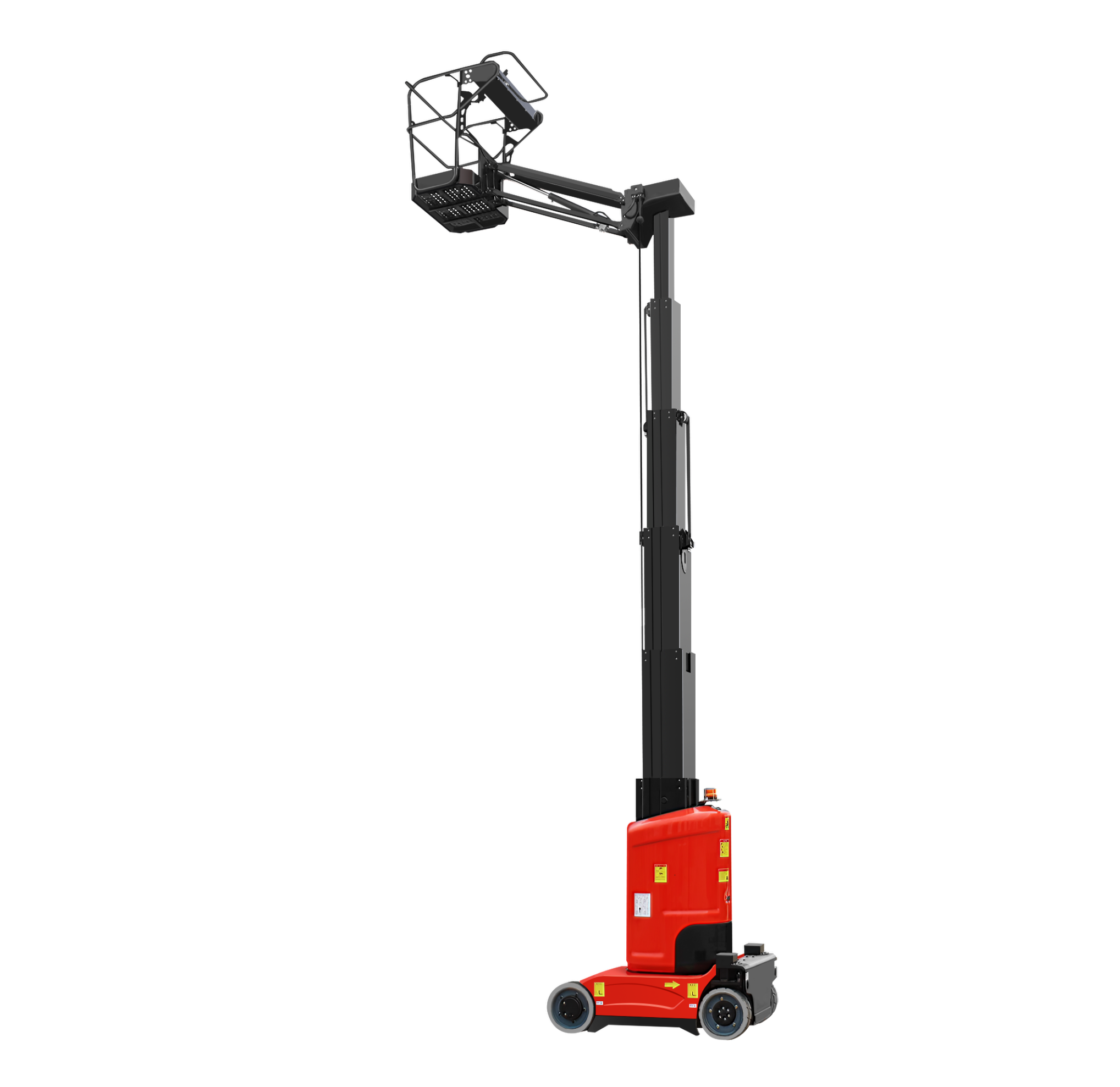

LMC9.2 · Wheeled Compact Articulated Boom Lift

Electric

Powered by a quiet DC electric system, Lerise wheeled compact articulated boom lift offers zero-emission operation ideal for indoor use. Equipped with non-marking tires, it ensures that expensive indoor surfaces—like polished marble or epoxy floors—remain pristine and free of scuffs.

Max Working Height11.2 m (36 ft 9 in)

Horizontal Reach3 m (9 ft 10 in)

Up and Over Height7.89 m (25 ft 11 in)

Machine Width1 m (3 ft 3 in)

Weight2,950 kg (6,504 lb)

Lift Capacity200 kg (441 lb)

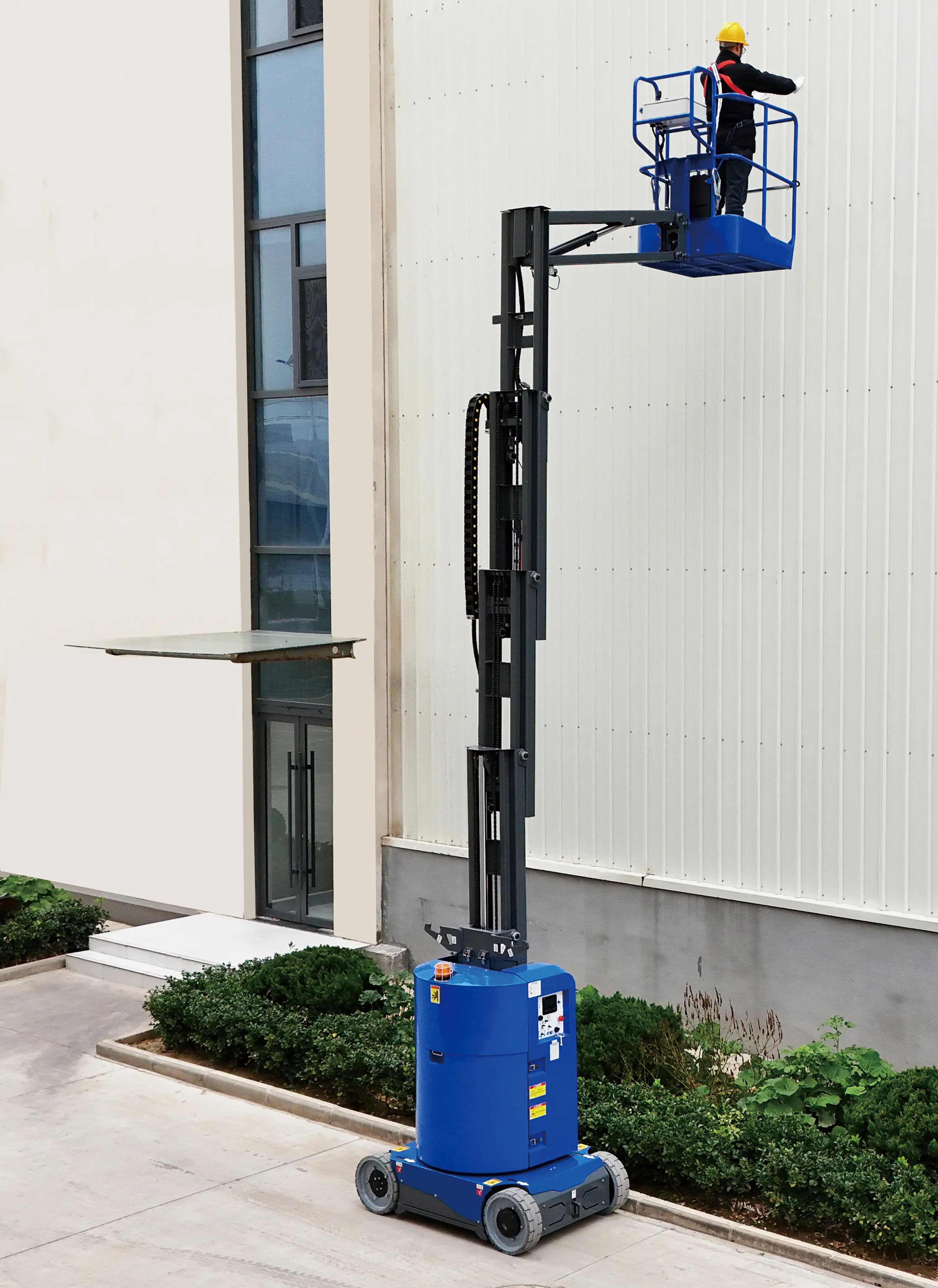

LMC10 · Wheeled Compact Articulated Boom Lift

Electric

Lerise wheeled compact articulated boom lift can be drivable while elevated to save time between tasks for Maximum Productivity.

Max Working Height12 m (39 ft 4 in)

Horizontal Reach5.6 m (18 ft 4 in)

Up and Over Height7.2 m (23 ft 7 in)

Machine Width1 m (3 ft 3 in)

Weight5,800 kg (12,787 lb)

Lift Capacity200 kg (441 lb)

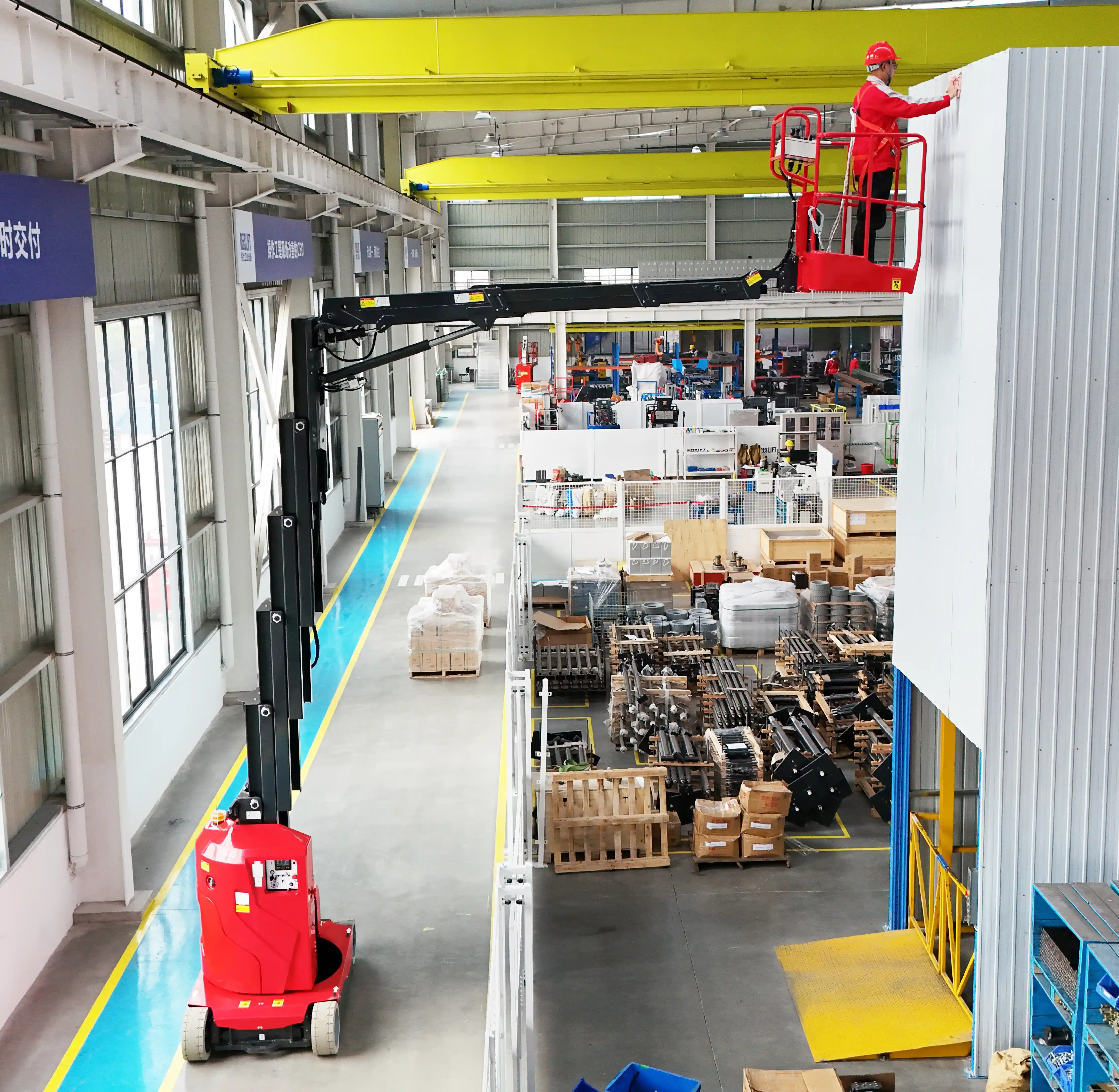

LMC10.5 · Wheeled Compact Articulated Boom Lift

Electric

Lerise Wheeled Compact Articulated Boom Lift features an integrated safety suite—including a Tilt Alarm, Emergency Lowering System, and Manual Brake Release—to ensure maximum operator protection and effortless maneuvering even in the event of power loss.

Max Working Height12.5 m (41 ft 0 in)

Horizontal Reach6 m (19 ft 8 in)

Up and Over Height7.15 m (23 ft 5 in)

Machine Width1.2 m (3 ft 11 in)

Weight5,020 kg (11,067 lb)

Lift Capacity200 kg (441 lb)

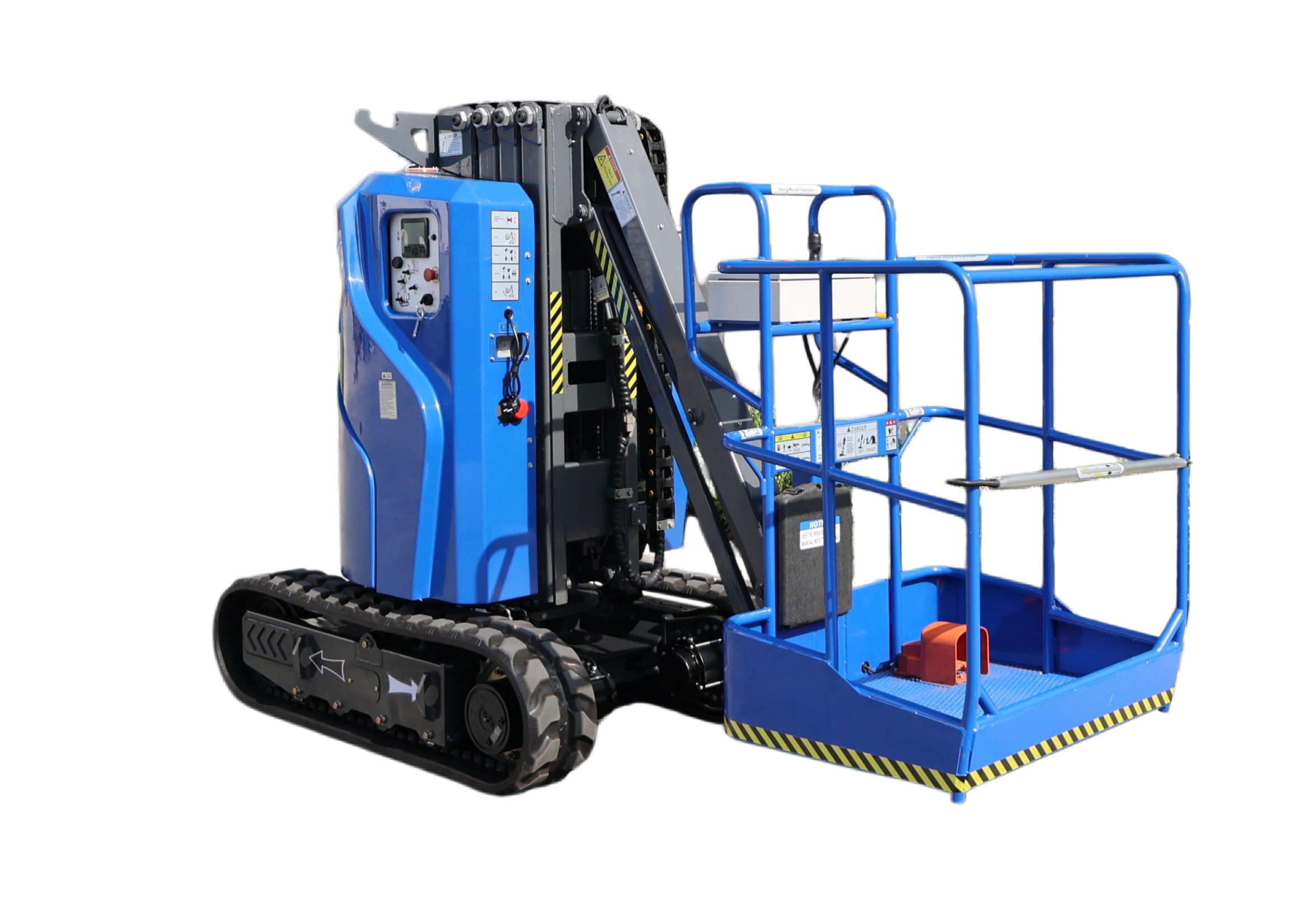

LMC7T · Tracked Compact Articulated Boom Lift

Electric

With a rugged rubber track undercarriage, Lerise tracked compact articulating boom lift excels on soft, uneven, or sensitive surfaces. It is designed for operators who need high-reach precision in both outdoor landscaping and indoor facility management.

Max Working Height9 m (29 ft 6 in)

Horizontal Reach3.36 m (11 ft)

Up and Over Height5.5 m (18 ft 1 in)

Machine Width1.2 m (3 ft 11 in)

Weight2,980 kg (6,570 lb)

Lift Capacity200 kg (441 lb)

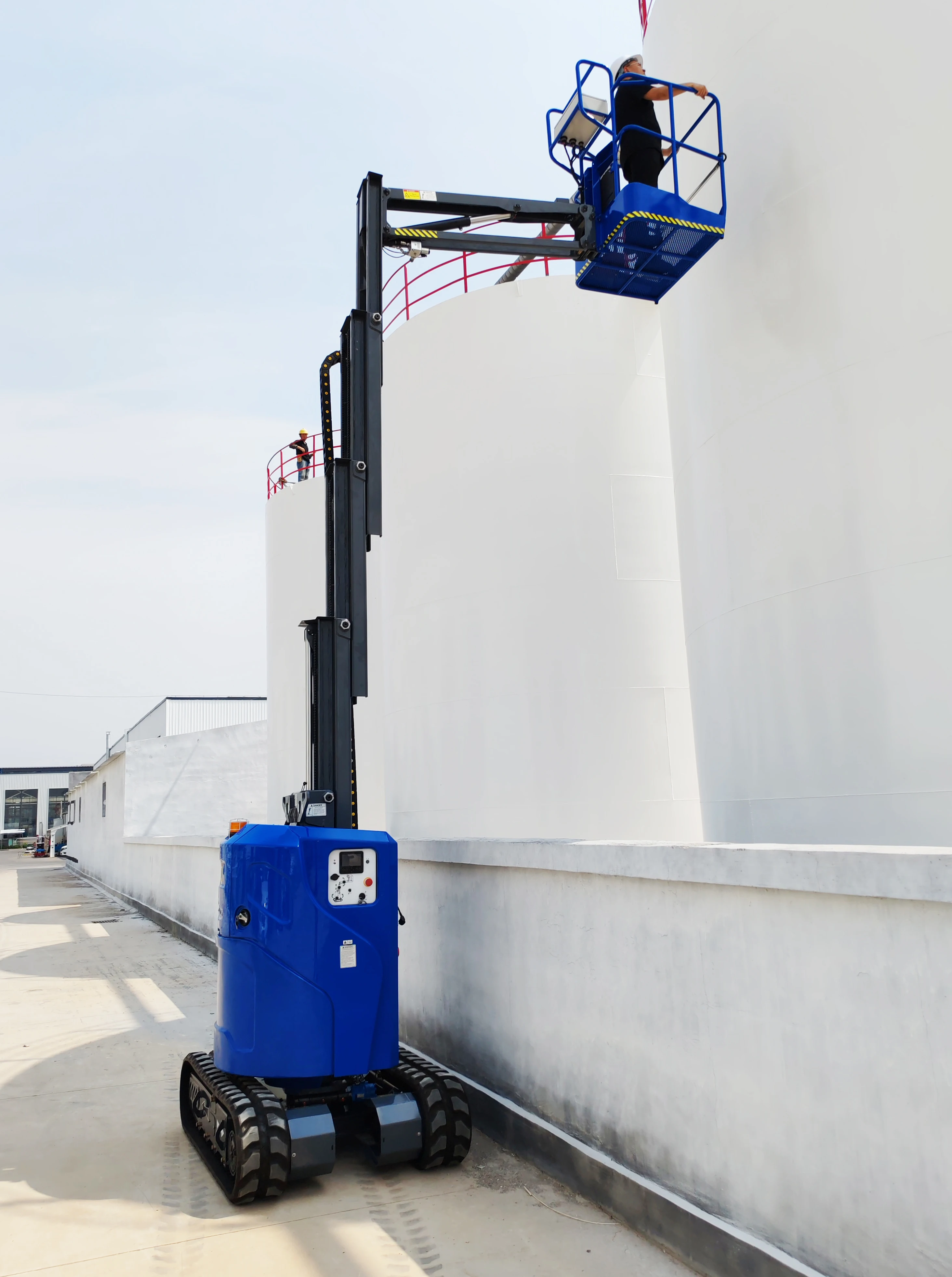

LMC8T · Tracked Compact Articulated Boom Lift

Electric

The specialized rubber tracks distribute weight evenly, making Lerise tracked compact articulting boom lift perfect for delicate indoor flooring (like tiles and wood) or soft outdoor turf, leaving zero damage or ruts.

Max Working Height10 m (32 ft 10 in)

Horizontal Reach3.61 m (11 ft 10 in)

Up and Over Height6.4 m (21 ft 0 in)

Machine Width1.2 m (3 ft 11 in)

Weight3,300 kg (7,275 lb)

Lift Capacity200 kg (441 lb)

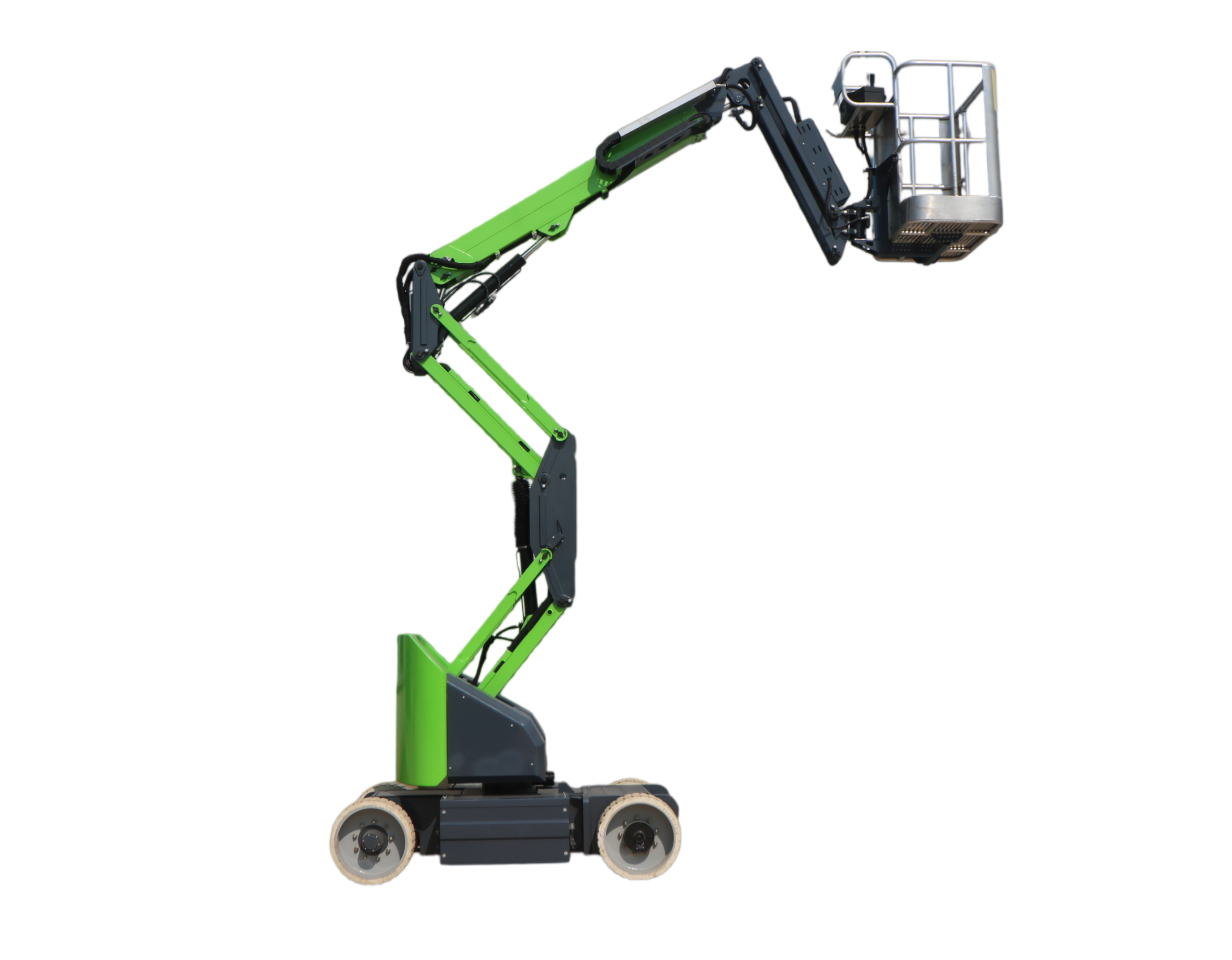

LMC9L · Large-scale Articulated Boom Lift

Electric

Lerise Large-scale Articulated Boom Lift offers a a significantly wider Horizontal Reach compared to compact models. Its robust chassis and extended boom geometry allow operators to cover a massive work area from a single parking position, drastically reducing repositioning time and boosting site efficiency.

Max Working Height11.5 m (37 ft 9 in)

Horizontal Reach6.2 m (20 ft 4 in)

Up and Over Height4.5 m (14 ft 9 in)

Machine Width1.27 m (4 ft 2 in)

Weight4,800 kg (10,582 lb)

Lift Capacity200 kg (441 lb)

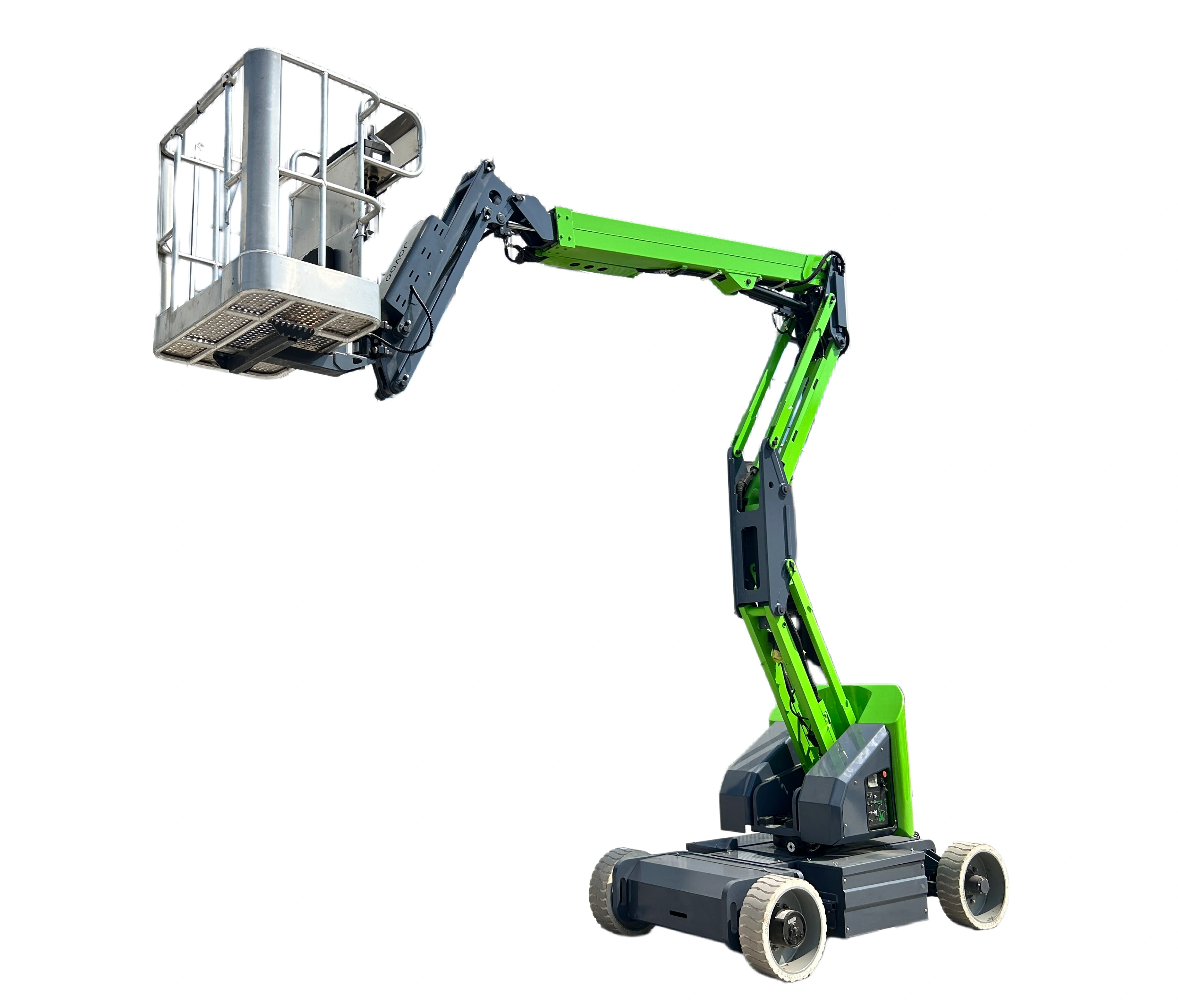

LMC11 · Large-scale Articulated Boom Lift

Electric

With larger physical dimensions and high-pivot point, Lerise Large-scale Articulated Boom Lift creates a "super-sized" reach zone. This is the go-to solution for large stadium construction, shipyard maintenance, and petrochemical plant repairs.

Max Working Height11.5 m (37 ft 9 in)

Horizontal Reach6.5 m (21 ft 4 in)

Up and Over Height4.65 m (15 ft 3 in)

Machine Width1.50 m (4 ft 11 in)

Weight5,200 kg (11,464 lb)

Lift Capacity200 kg (441 lb)

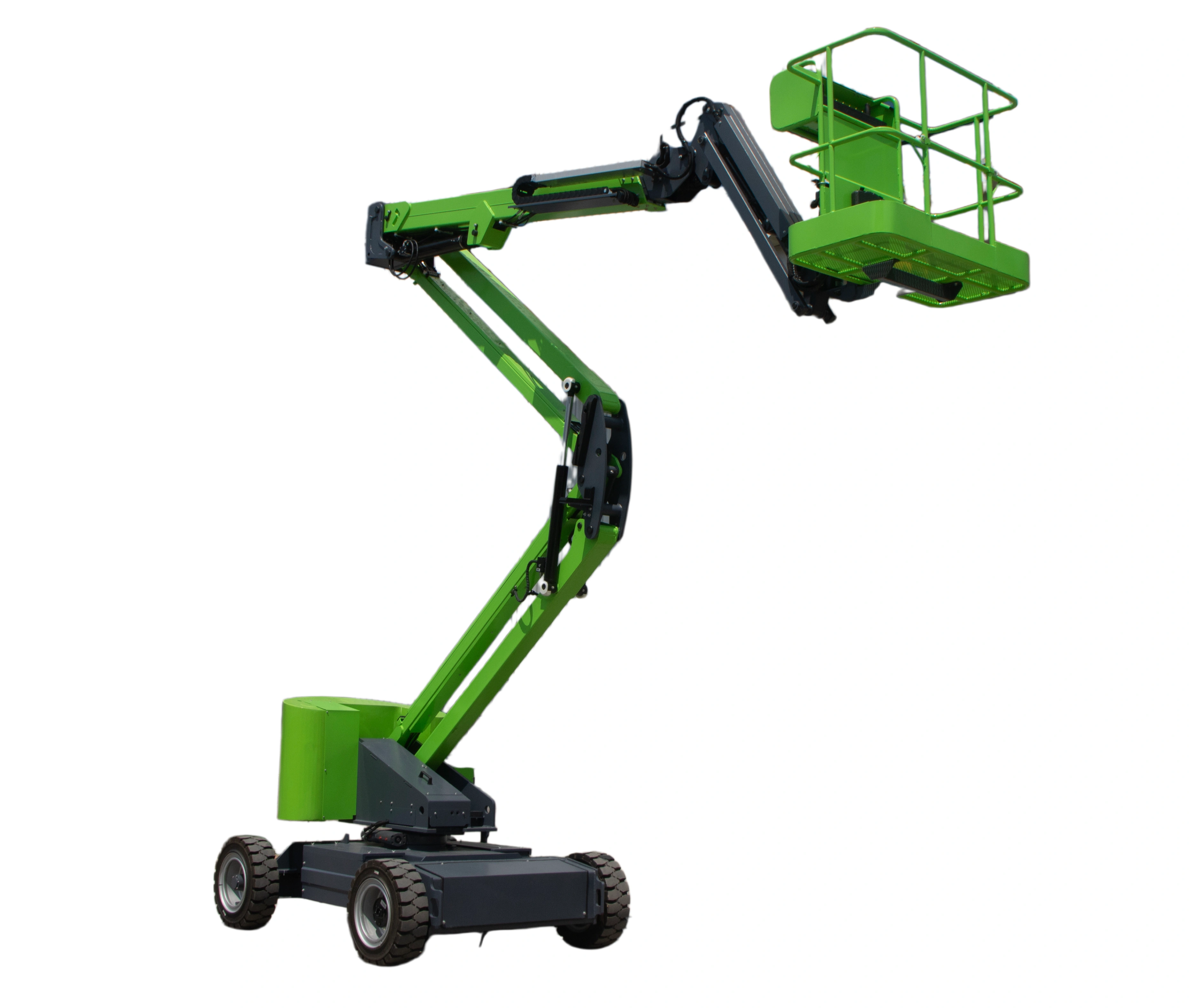

LMC12 · Large-scale Articulated Boom Lift

Electric

Featuring a high-efficiency electric drive system and optional non-marking tires, Lerise Large-scale Articulated Boom Lift delivers zero-emission performance, near-silent operation and free from scuffs, it is the ideal solution for high-traffic commercial spaces where maintaining a clean, professional image is as important as the task at hand.

Max Working Height13.5 m (44 ft 3 in)

Horizontal Reach5.63 m (18 ft 6 in)

Up and Over Height5.4 m (17 ft 9 in)

Machine Width1.50 m (4 ft 11 in)

Weight3,760 kg (8,289 lb)

Lift Capacity215 kg (474 lb)

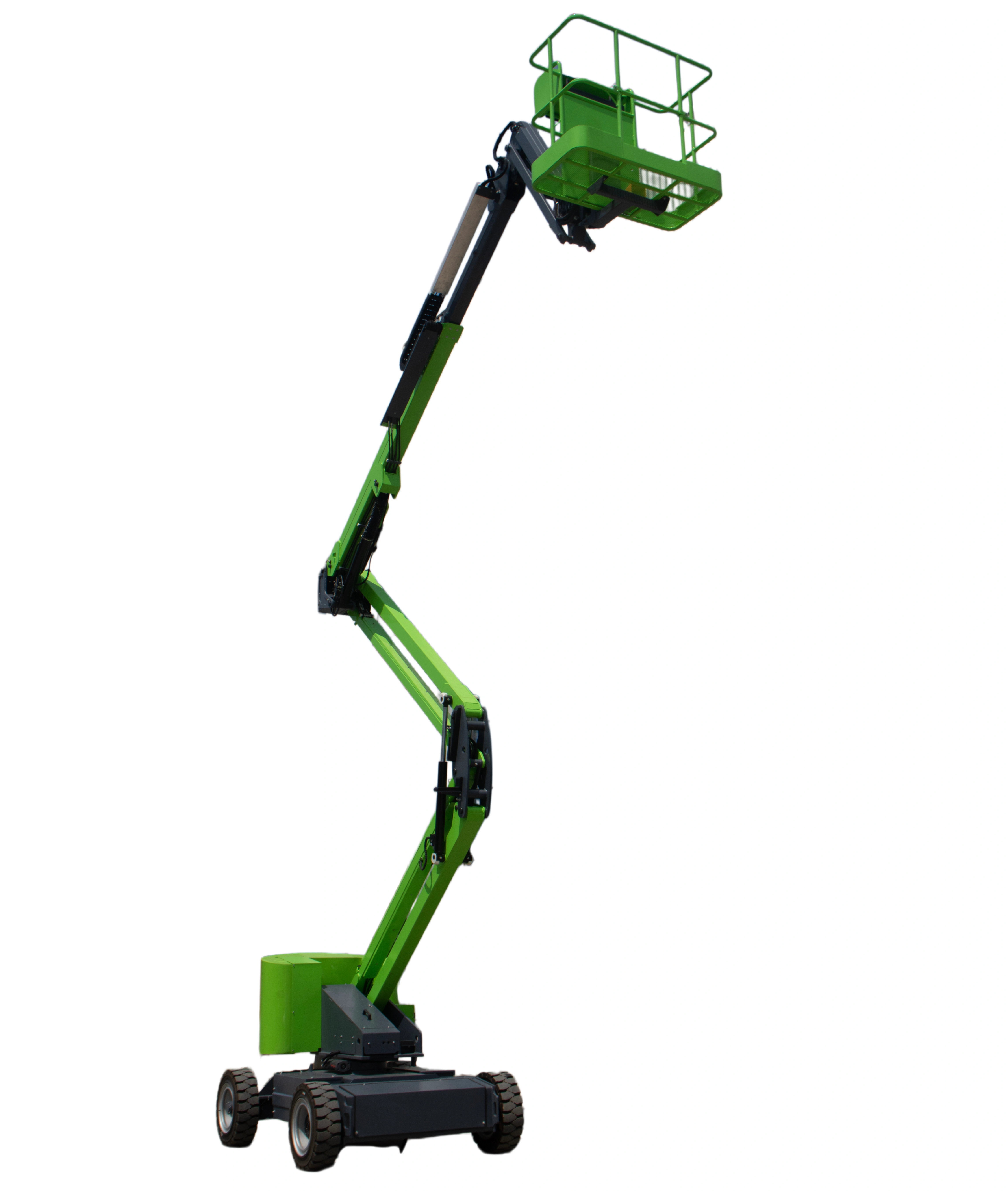

LMC14E · Large-scale Articulated Boom Lift

Electric

Starting from 14m models and above, Lerise offer two distinct power configurations—Electric and Diesel—designed to match the specific demands of your job site.For indoor facility management, our Electric models save you from ventilation costs.

Max Working Height15.8 m (51 ft 10 in)

Horizontal Reach7.5 m (24 ft 7 in)

Up and Over Height7.0 m (23 ft)

Machine Width1.76 m (5 ft 9 in)

Weight5,960 kg (13,140 lb)

Lift Capacity230 kg (507 lb)

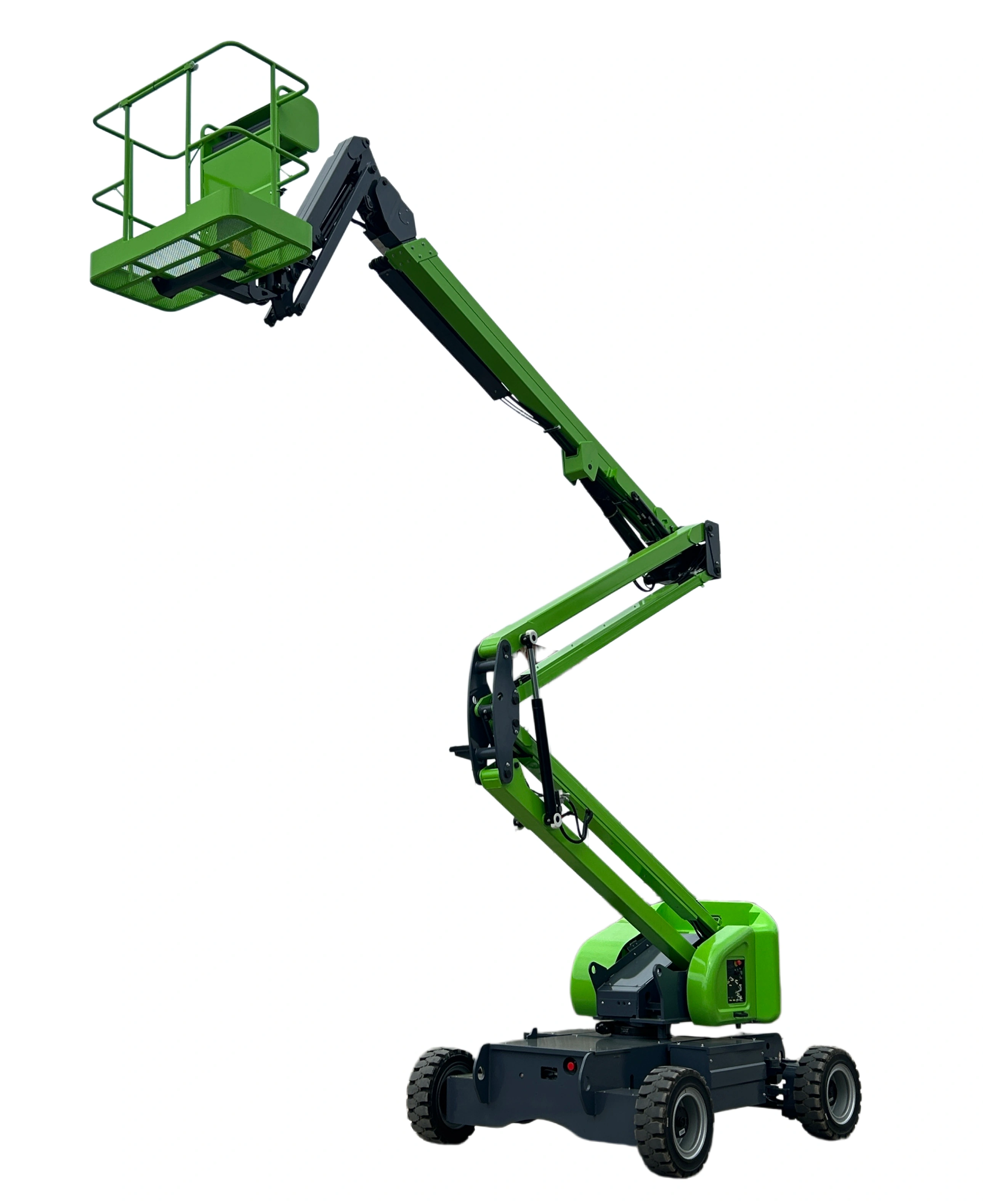

LMC16E · Large-scale Articulated Boom Lift

Electric

Lerise electric articulated boom lifts maximize your ROI(Return on Investment) by eco-friendly and quite operation, ensuring your projects stay on schedule without damaging floors or interrupting business operations.

Max Working Height15.7 m (51 ft 6 in)

Horizontal Reach8.9 m (29 ft 2 in)

Up and Over Height7.3 m (23 ft 11 in)

Machine Width1.90 m (6 ft 3 in)

Weight6,630 kg (14,617 lb)

Lift Capacity230 kg (507 lb)

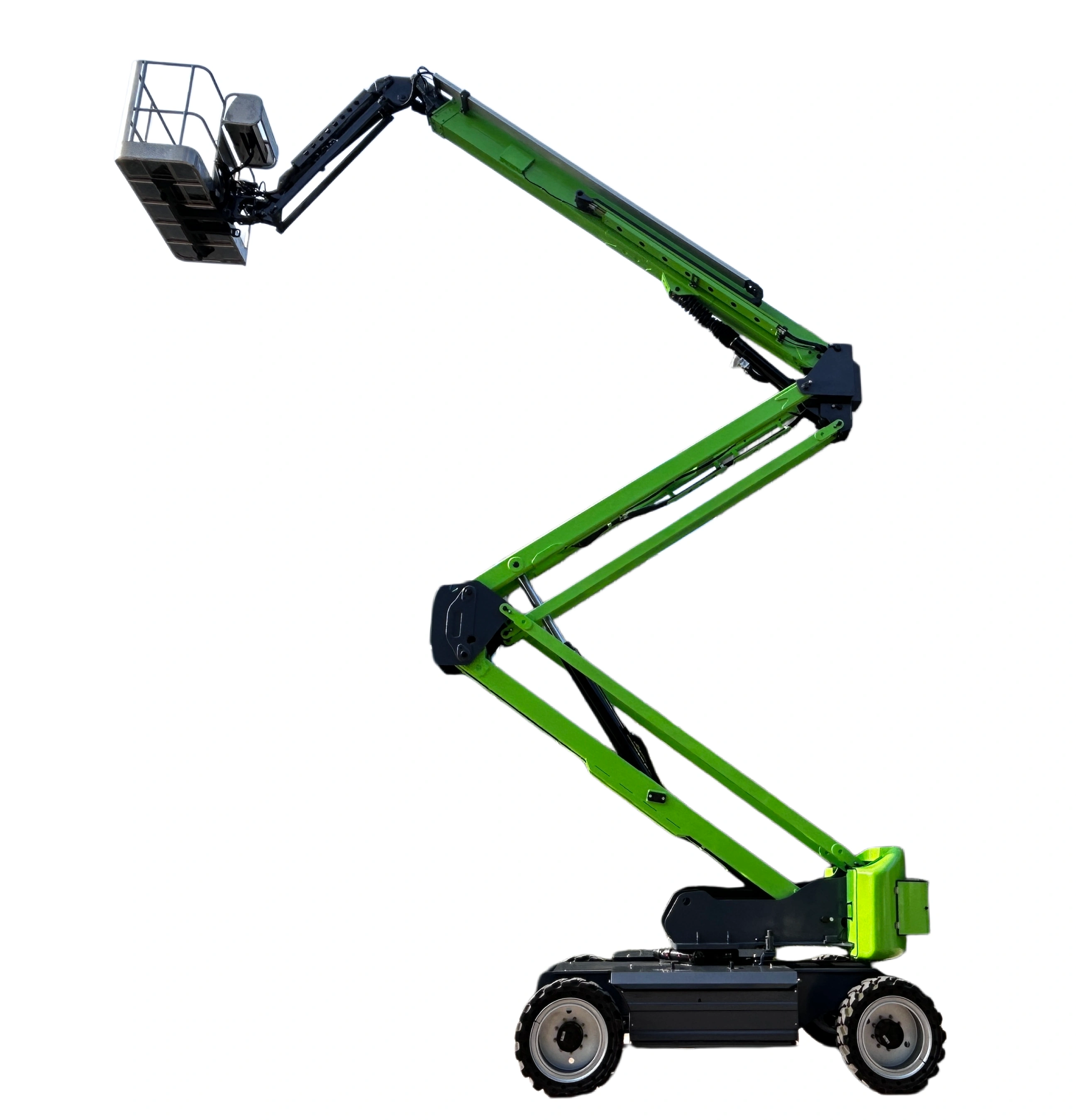

LMC18E · Large-scale Articulated Boom Lift

Electric

Lerise electric articulated boom lifts maximize your ROI(Return on Investment) by eco-friendly and quiet operation, ensuring your projects stay on schedule without damaging floors or interrupting business operations.

Max Working Height20 m (65 ft 7 in)

Horizontal Reach11.1 m (36 ft 5 in)

Up and Over Height8.0 m (26 ft 3 in)

Machine Width2.49 m (8 ft 2 in)

Weight9,100 kg (20,062 lb)

Lift Capacity230 kg / 350 kg (507 lb / 772 lb)

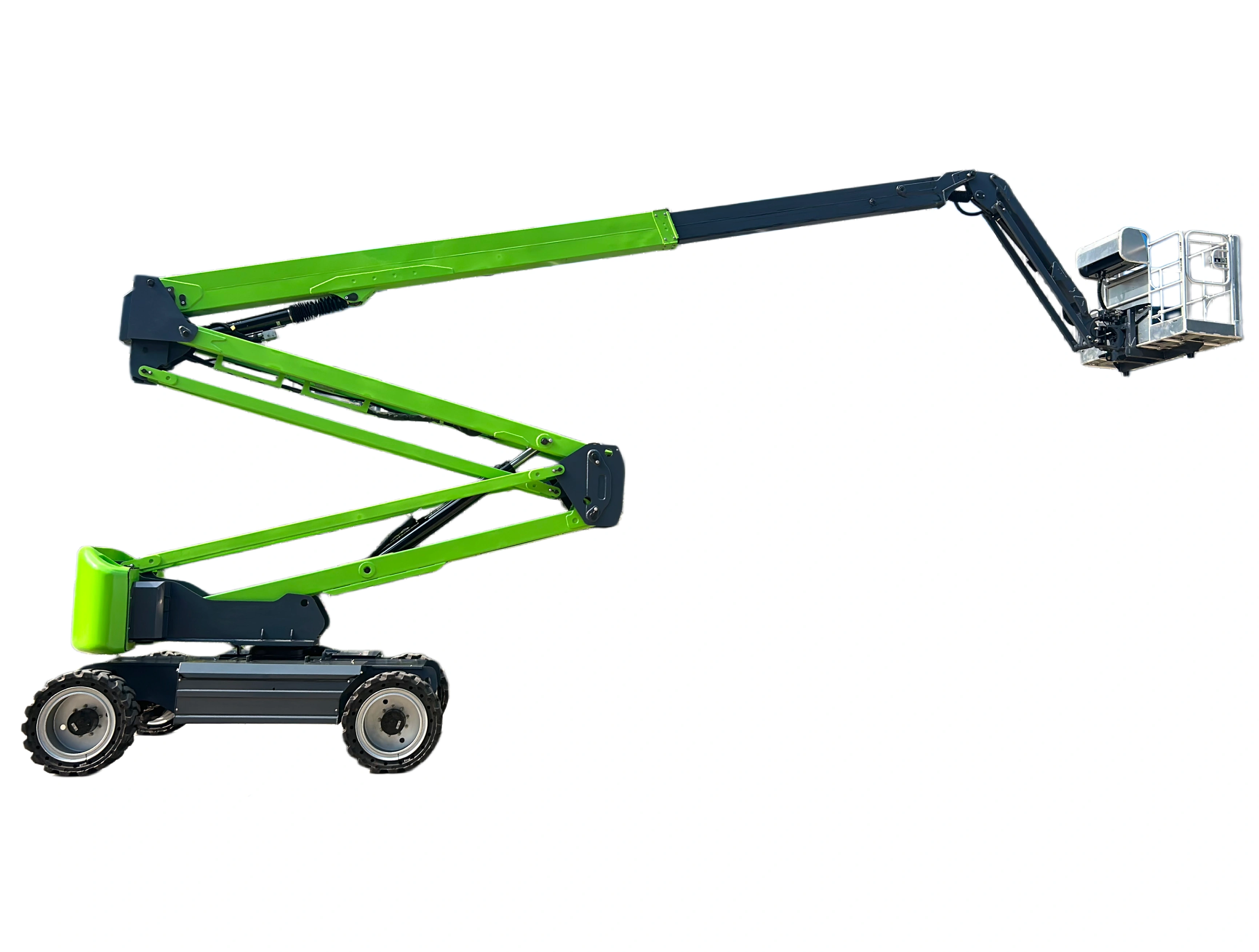

LMC20E · Large-scale Articulated Boom Lift

Electric

Max Working Height22.5 m (73 ft 10 in)

Horizontal Reach11.8 m (38 ft 9 in)

Up and Over Height9.4 m (30 ft 10 in)

Machine Width2.49 m (8 ft 2 in)

Weight10,000 kg (22,046 lb)

Lift Capacity230 kg / 350 kg (507 lb / 772 lb)

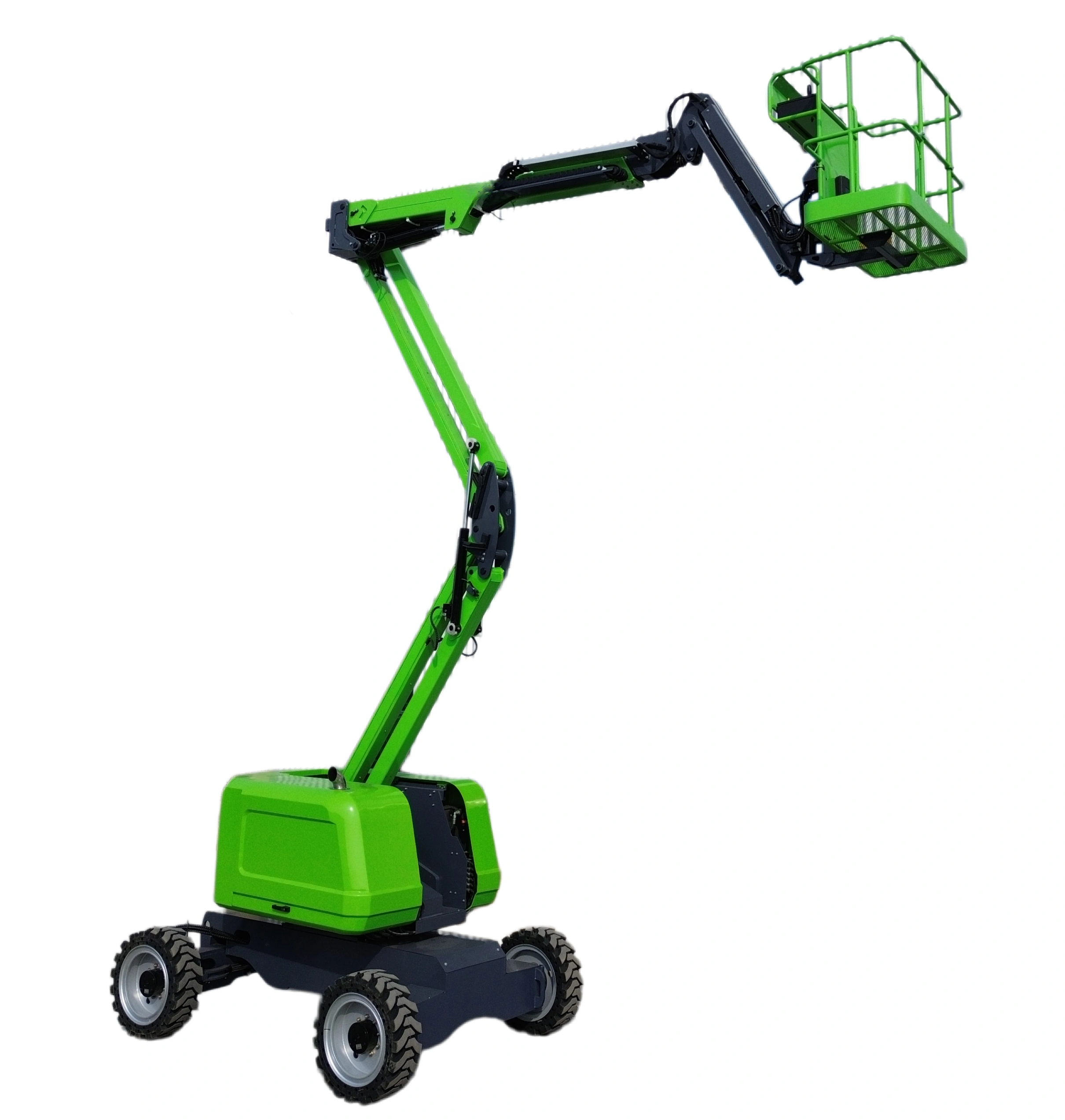

LMC14D · Large-scale Articulated Boom Lift

Diesel

Lerise diesel articulated boom lifts delivers unstoppable power, superior gradeability and rough terrain tires to ensure maximum uptime on the toughest off-road construction sites.

Max Working Height16 m (52 ft 6 in)

Horizontal Reach8.22 m (27 ft 0 in)

Up and Over Height7.4 m (24 ft 3 in)

Machine Width2.26 m (7 ft 5 in)

Weight6,800 kg (14,991 lb)

Lift Capacity230 kg (507 lb)

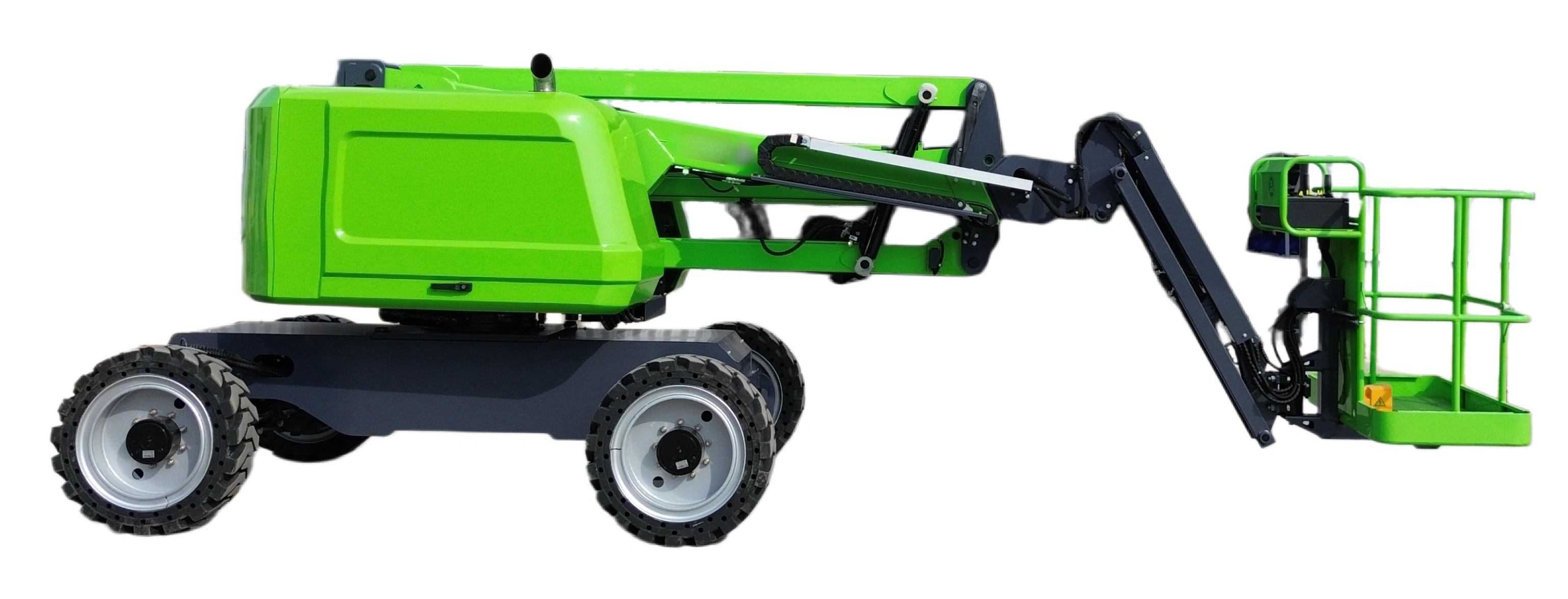

LMC16D · Large-scale Articulated Boom Lift

Diesel

Lerise diesel articulated boom lifts delivers unstoppable power, superior gradeability and rough terrain tires to ensure maximum uptime on the toughest off-road construction sites.

Max Working Height18 m (59 ft 1 in)

Horizontal Reach9 m (29 ft 6 in)

Up and Over Height7.6 m (24 ft 11 in)

Machine Width2.26 m (7 ft 5 in)

Weight7,200 kg (15,873 lb)

Lift Capacity230 kg (507 lb)

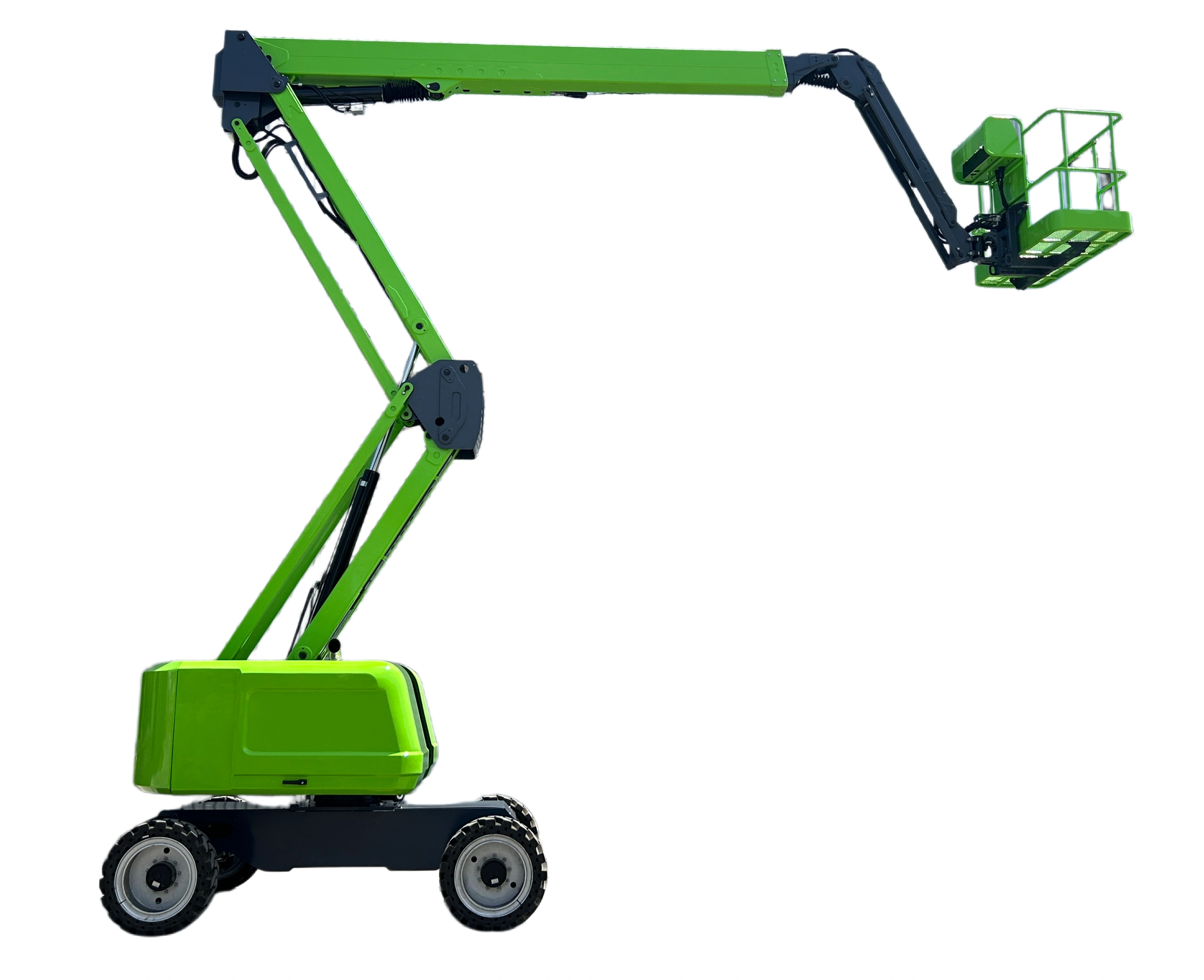

LMC18D · Large-scale Articulated Boom Lift

Diesel

Lerise diesel articulated boom lifts deliver unstoppable power, superior gradeability and rough terrain tires to ensure maximum uptime on the toughest off-road construction sites.

Max Working Height20 m (65 ft 7 in)

Horizontal Reach11.3 m (37 ft 1 in)

Up and Over Height8.1 m (26 ft 7 in)

Machine Width2.35 m (7 ft 8 in)

Weight9,600 kg (21,164 lb)

Lift Capacity230 kg / 350 kg (507 lb / 772 lb)

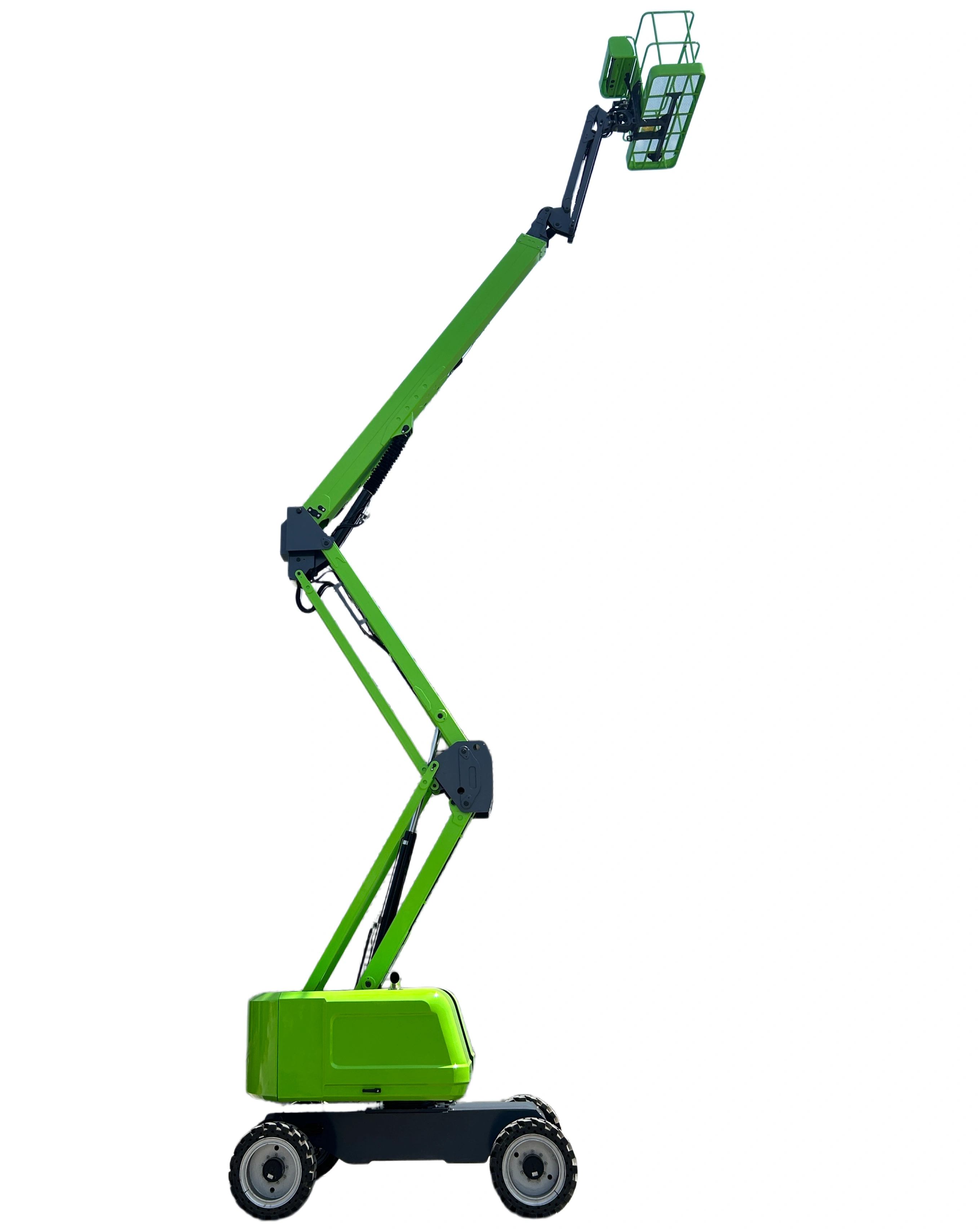

LMC20D · Large-scale Articulated Boom Lift

Diesel

Lerise diesel articulated boom lifts deliver unstoppable power, superior gradeability and rough terrain tires to ensure maximum uptime on the toughest off-road construction sites.

Max Working Height22 m (72 ft 2 in)

Horizontal Reach12 m (39 ft 4 in)

Up and Over Height9.2 m (30 ft 2 in)

Machine Width2.4 m (7 ft 10 in)

Weight10,100 kg (22,267 lb)

Lift Capacity230 kg / 350 kg (507 lb / 772 lb)

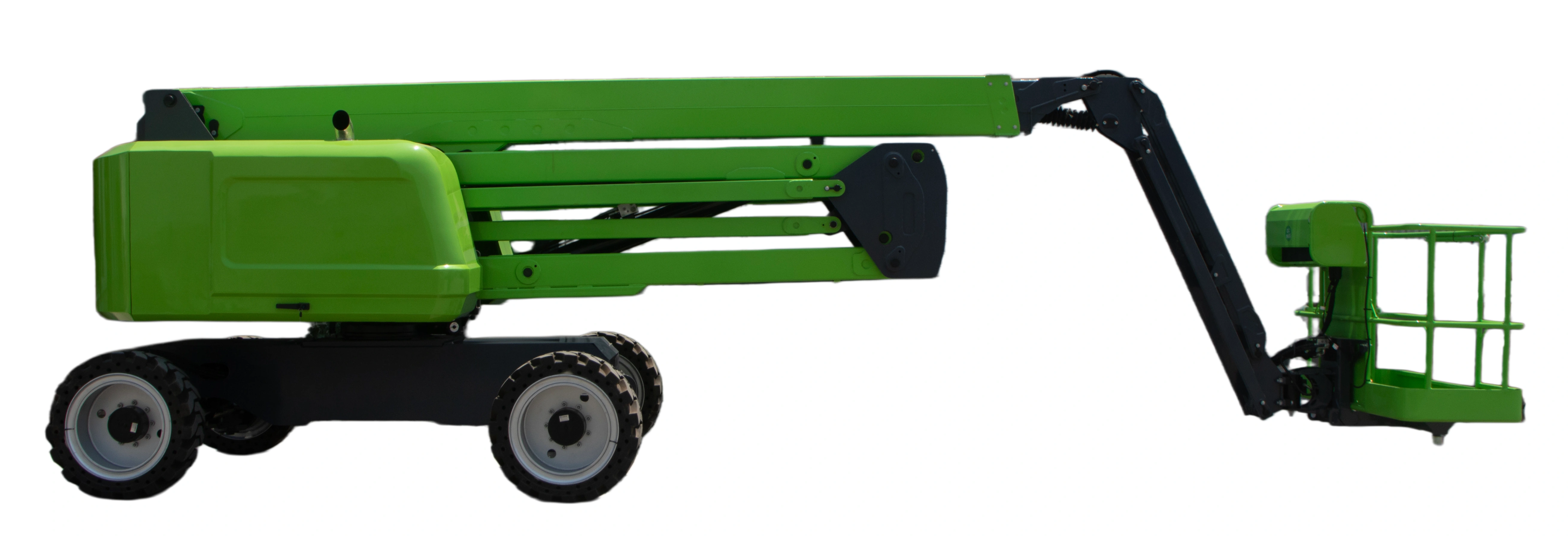

LMC24D · Large-scale Articulated Boom Lift

Diesel

Lerise diesel articulated boom lifts deliver unstoppable power, superior gradeability and rough terrain tires to ensure maximum uptime on the toughest off-road construction sites.

Max Working Height26 m (85 ft 4 in)

Horizontal Reach15.4 m (50 ft 6 in)

Up and Over Height10.2 m (33 ft 6 in)

Machine Width2.85 m (9 ft 4 in)

Weight16,300 kg (35,935 lb)

Lift Capacity230 kg (507 lb)

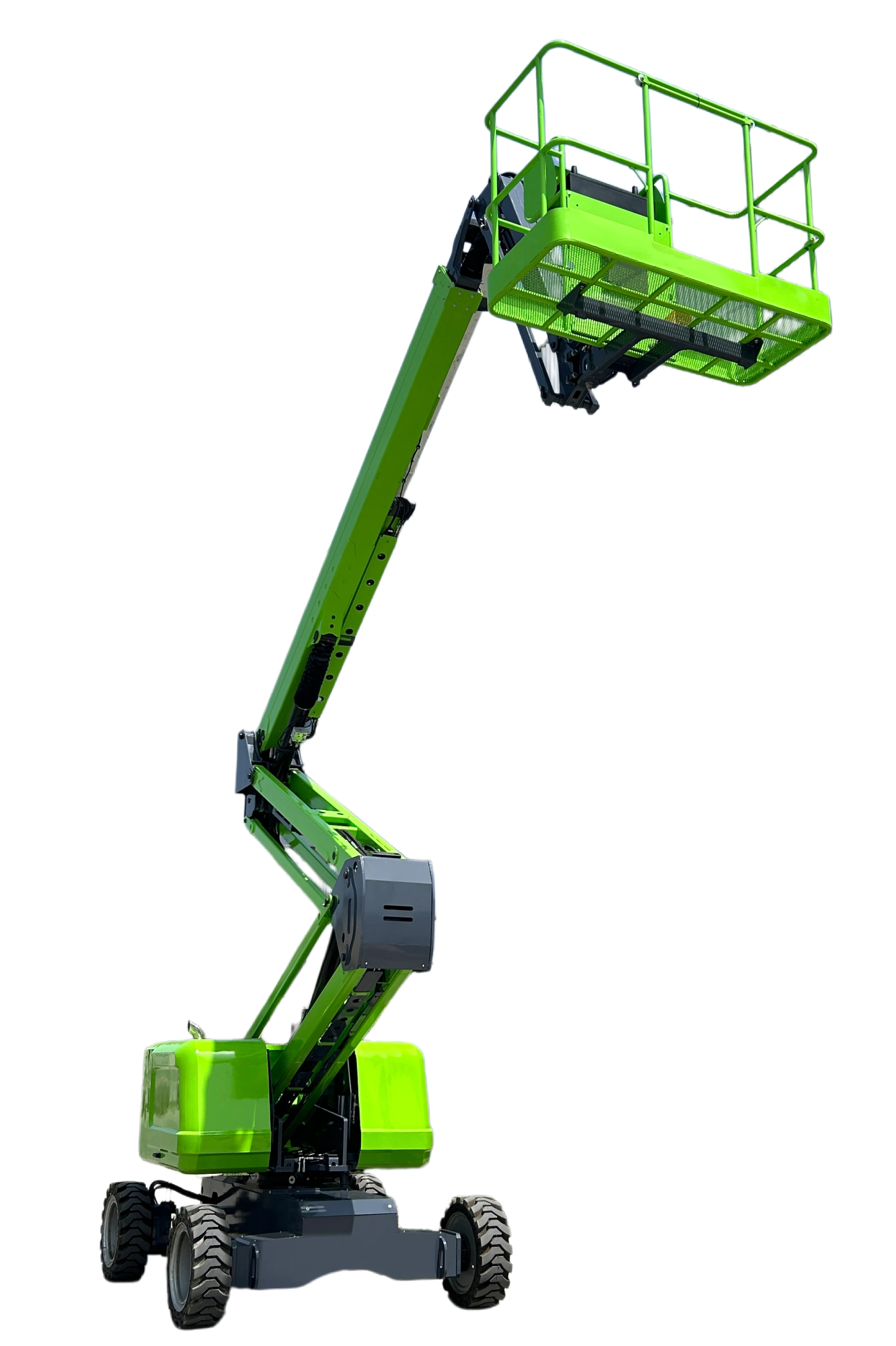

LMC26D · Large-scale Articulated Boom Lift

Diesel

Lerise diesel articulated boom lifts deliver unstoppable power, superior gradeability and rough terrain tires to ensure maximum uptime on the toughest off-road construction sites.

Max Working Height28 m (91 ft 10 in)

Horizontal Reach17.2 m (56 ft 5 in)

Up and Over Height10.2 m (33 ft 6 in)

Machine Width2.58 m (8 ft 6 in)

Weight17,000 kg (37,479 lb)

Lift Capacity230 kg (507 lb)

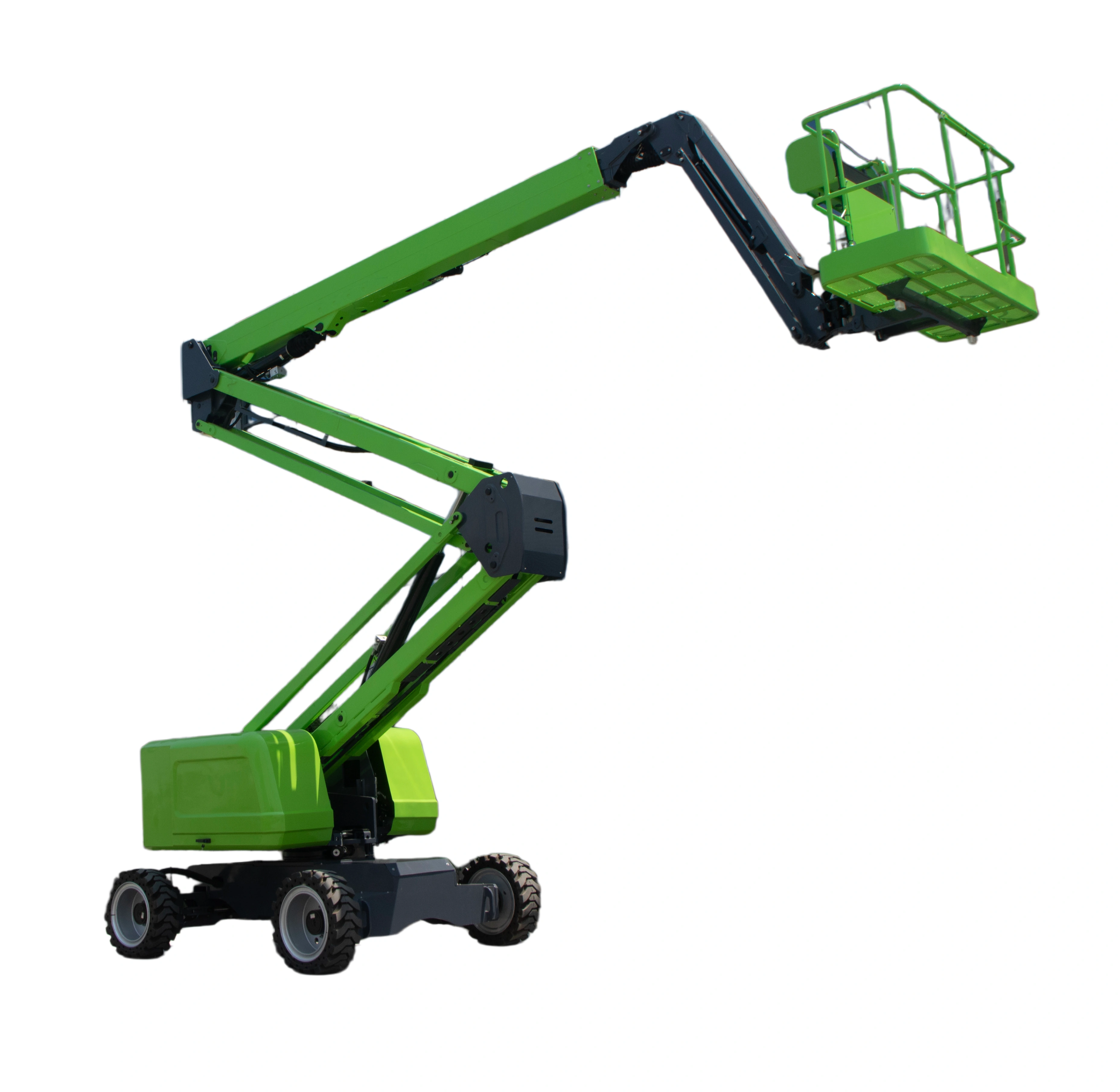

LMC30D · Large-scale Articulated Boom Lift

Diesel

Lerise diesel articulated boom lifts deliver unstoppable power, superior gradeability and rough terrain tires to ensure maximum uptime on the toughest off-road construction sites.

Max Working Height32 m (105 ft 0 in)

Horizontal Reach20.2 m (66 ft 3 in)

Up and Over Height12.2 m (40 ft)

Machine Width2.49 m (8 ft 2 in)

Weight18,000 kg (39,683 lb)

Lift Capacity230 kg / 480 kg (507 lb / 1,058 lb)

Frequently Asked Questions · Articulated Boom Lifts

What is the main advantage of an articulated boom lift vs telescopic?

Articulated booms feature hinged arms that provide "up-and-over" capability, allowing you to reach above obstacles, around structures, or into confined spaces. They offer superior maneuverability and positioning flexibility compared to straight telescopic booms.

Are Lerise articulated boom lifts available with electric power?

Yes, models like LMC8 and LMC9 can be configured with maintenance-free electric powertrains, ideal for indoor, noise-sensitive, or emission-restricted job sites.

What safety features are standard on Lerise articulating booms?

All models include tilt sensors, overload protection, emergency descent, platform interlock, and optional active sway control. CE, ANSI A92, and CSA compliant.

Do these lifts have jib articulation?

Most models feature a secondary jib with +70° / -60° vertical articulation, enabling precise basket positioning for detail work, welding, or installation tasks.
